Interface class for ODE solvers. Mehr ...
#include <interfaces.hh>
Öffentliche Typen | |
| typedef Traits::OperatorType | OperatorType |
| Type of the space operator \( { \cal L }_h \). | |
| typedef Traits::EvolutionModelType | EvolutionModelType |
| Type of the evolution model description. | |
Öffentliche Methoden | |
| template<class DofVectorType , class DestinationOutputType > | |
| void | solve (DofVectorType const &init, DestinationOutputType &destOutput) |
| method executing the actual ode solver and solving the differential equation | |
Ausführliche Beschreibung
template<class Traits>
class ODESolverInterface< Traits >
Interface class for ODE solvers.
This interfaces defines the minimal methods and types of an ODE solver, solving a differential equation of following type
\[ u_h(0) = { \cal P }_h[u_0] \]
\[ \partial_{t} u_h(t) - { \cal L }_h[u_h(t)] = 0; \]
for a time interval \([0, T]\)
- Template Parameters:
-
Traits Traits class with types to be exported by ODE solvers.
Dokumentation der benutzerdefinierten Datentypen
| typedef Traits :: EvolutionModelType ODESolverInterface< Traits >::EvolutionModelType |
Type of the evolution model description.
This type should be derived from EvolutionModelInterface

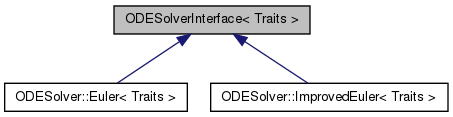

Erneute Implementation in ODESolver::ImprovedEuler< Traits > und ODESolver::Euler< Traits >.
| typedef Traits :: OperatorType ODESolverInterface< Traits >::OperatorType |
Type of the space operator \( { \cal L }_h \).
This type should be derived from SpaceOperatorInterface
Erneute Implementation in ODESolver::ImprovedEuler< Traits > und ODESolver::Euler< Traits >.
Dokumentation der Elementfunktionen
| void ODESolverInterface< Traits >::solve | ( | DofVectorType const & | init, |
| DestinationOutputType & | destOutput | ||
| ) | [inline] |
method executing the actual ode solver and solving the differential equation
- Template Parameters:
-
DofVectorType Storage type holding the vector of degrees of freedom. This type should be derived from DofVectorInterface. DestinationOutputType Type of the class handling the intermediate results. This needs to be a class specification of the class template ODEDestinationOutput
Erneute Implementation in ODESolver::ImprovedEuler< Traits > und ODESolver::Euler< Traits >.
Die Dokumentation für diese Klasse wurde erzeugt aufgrund der Datei:
- interfaces.hh
