Seismic waves and seismology: How to investigate the Earth

Earth1 Waves1 Waves2

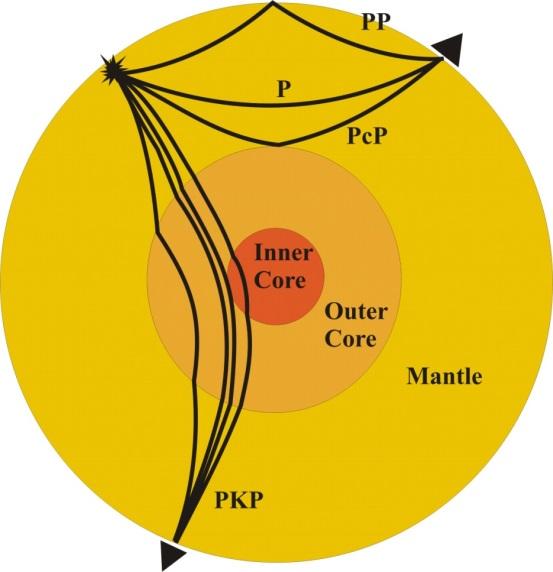

If the Earth had a simple structure (mantle, outer core, inner core) and velocity and density would increase with depth, we would expect only very few seismic arrivals and simple waveforms.

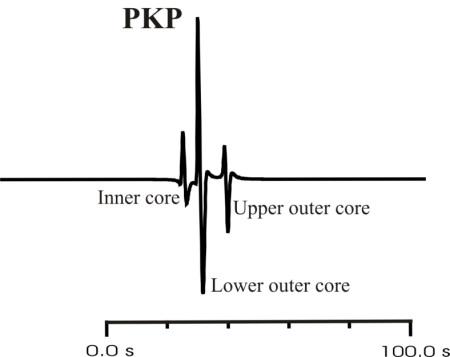

The Earth, however, provides much more complicated data:

Waves3 Waves4

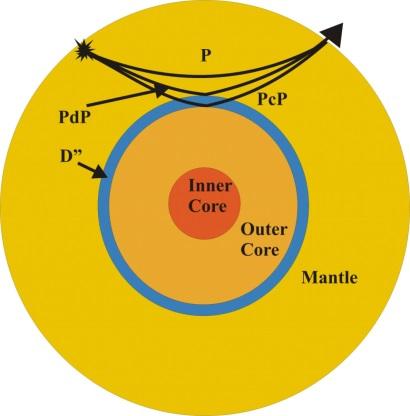

When a seismic discontinuity is added to (e.g.,) the lowermost mantle, an additional arrival appread in the seismogram:

Earth2 Waves5

Slowness and Backazimuth
